Visualize as you randomize

The goal of vayr is to provide ggplot2 extensions that foster “visualize as you randomize” principles. These principles are outlined in detail in “Visualize As You Randomize: Design-based Statistical Graphs for Randomized Experiments,” a chapter in Advances in Experimental Political Science (PDF, DOI). The package includes position adjustments that avoid over-plotting, which helps organize “data-space” to better contextualize statistical models.

Installation

The release version of vayr can be installed from CRAN, and the development version can be installed from GitHub using a package like remotes, devtools, or pak. vayr relies on ggplot2, packcircles, and withr, so these must be installed as well.

# From CRAN
install.packages("vayr")

# From GitHub
# install.packages("pak")
pak::pak("acoppock/vayr")

vayr contains a handful of ggplot2 functions that apply as position adjustments to “point-like” geoms such as geom_point or geom_text:

position_jitter_ellipse() and position_jitterdodge_ellipse()
position_bluenoise() and position_bluenoisedodge()
position_sunflower() and position_sunflowerdodge()
position_honeycomb() and position_honeycombdodge()
position_circlepack() and position_circlepackdodge()

These functions avoid over-plotting, so they are especially useful when plotting discrete rather than continuous data. To demonstrate, we use them below to visualize synthetic data, over-plotted at the origin.

library(dplyr)
library(estimatr)
library(ggplot2)
library(patchwork)
library(vayr)

set.seed(1)

dat <- data.frame(
  x = c(rep(0, 200)),
  y = c(rep(0, 200)),
  group = (rep(c("A", "B", "B", "B"), 50)),
  size = runif(200, 0, 1)
)

If position is the product of discrete variables alone, then over-plotting is of particular concern. position_jitter() can mitigate it. It introduces variation by randomly sampling points on a rectangle. This approach is effective but can be unattractive. The position adjustments in vayr aim to do better.

# perfectly over-plotted points
over_plot <- ggplot(dat, aes(x = x, y = y)) +
  geom_point() +
  coord_equal(xlim = c(-1.1, 1.1),
              ylim = c(-1.1, 1.1)) +
  theme_bw() +
  theme(axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle('"perfect over-plotting"')

# position_jitter()
jitter_plot <- ggplot(dat, aes(x = x, y = y)) +
  geom_point(position = position_jitter(width = 0.5,
                                        height = 0.5)) +
  coord_equal(xlim = c(-1.1, 1.1),
              ylim = c(-1.1, 1.1)) +
  theme_bw() +
  theme(axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_jitter()")

over_plot + jitter_plot

perfect over-plotting and position_jitter()

Position Jitter Ellipse

position_jitter_ellipse() adds elliptical random noise to perfectly over-plotted points, offering a pleasing way to visualize many points that represent the same position. The benefit of sampling on an ellipse of a given height and width rather than on a rectangle is that the resulting dispersion retains the impression of a single point. The size of the ellipses stays constant, while their density varies depending on the amount of data.

# position_jitter_ellipse()
jitter_ellipse_plot <- ggplot(dat, aes(x = x, y = y)) +
  geom_point(position = position_jitter_ellipse(width = 0.5,
                                                height = 0.5)) +
  coord_equal(xlim = c(-1.1, 1.1),
              ylim = c(-1.1, 1.1)) +
  theme_bw() +
  theme(axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_jitter_ellipse()")

# position_jitterdodge_ellipse()
jitterdodge_ellipse_plot <- ggplot(dat, aes(x = x, y = y, color = group)) +
  geom_point(position = position_jitterdodge_ellipse(dodge.width = 2,
                                                     jitter.width = 0.5,
                                                     jitter.height = 0.5)) +
  coord_equal(xlim = c(-1.1, 1.1),
              ylim = c(-1.1, 1.1)) +
  theme_bw() +
  theme(legend.position = "none",
        axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_jitterdodge_ellipse()")

jitter_ellipse_plot + jitterdodge_ellipse_plot

position_jitter_ellipse() and position_jitterdodge_ellipse()

Position Blue Noise

position_bluenoise() fills the same elliptical field as position_jitter_ellipse(), but places the points so that no two land much closer together than the rest. Sampling uniformly at random, which is what jittering does, leaves visible knots and voids: in a draw of 250 points the closest pair typically sits about a fifteenth of the median spacing apart, and a reader cannot tell those knots from real structure. The arrangement here has the even spacing of a sunflower while still looking unstructured, so nobody mistakes a spiral arm for a finding. It is the pattern the eye’s own photoreceptors are laid out in.

# position_bluenoise()
bluenoise_plot <- ggplot(dat, aes(x = x, y = y)) +
  geom_point(position = position_bluenoise(width = 0.5,
                                           height = 0.5)) +
  coord_equal(xlim = c(-1.1, 1.1),
              ylim = c(-1.1, 1.1)) +
  theme_bw() +
  theme(axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_bluenoise()")

# position_bluenoisedodge()
bluenoisedodge_plot <- ggplot(dat, aes(x = x, y = y, color = group)) +
  geom_point(position = position_bluenoisedodge(dodge.width = 2,
                                                scatter.width = 0.5,
                                                scatter.height = 0.5)) +
  coord_equal(xlim = c(-1.1, 1.1),
              ylim = c(-1.1, 1.1)) +
  theme_bw() +
  theme(legend.position = "none",
        axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_bluenoisedodge()")

bluenoise_plot + bluenoisedodge_plot

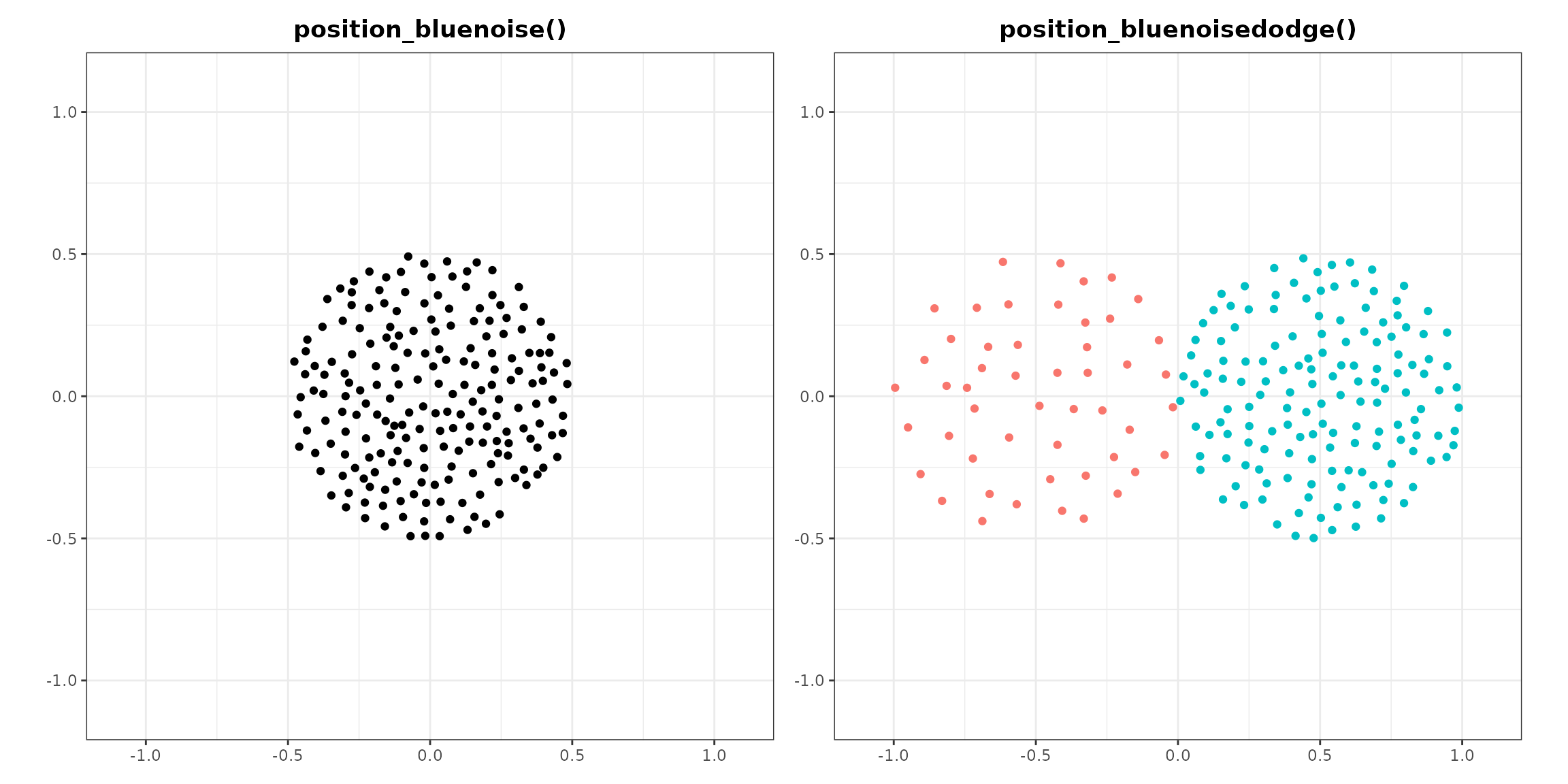

position_bluenoise() and position_bluenoisedodge()

Position Sunflower

position_sunflower() arranges perfectly over-plotted points using a sunflower algorithm, which produces a pattern that resembles the seeds of a sunflower, working from the inside out in the order of the data. The parameters for this position adjustment are density and aspect_ratio. The size of the flowers varies depending on the amount of over-plotting, but the density of the pattern remains constant. A point with nothing over-plotting it stays where it is. We generally recommend pairing the position adjustment with coord_equal(), in which case the default aspect ratio of 1 yields perfectly circular flowers, but the aspect ratio of the flowers can be adjusted if need be.

# position_sunflower()
sunflower_plot <- ggplot(dat, aes(x = x, y = y)) +
  geom_point(position = position_sunflower(density = 1,
                                           aspect_ratio = 1)) +
  coord_equal(xlim = c(-2.1, 2.1),
              ylim = c(-2.1, 2.1)) +
  theme_bw() +
  theme(axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_sunflower()")

# position_sunflowerdodge()
sunflowerdodge_plot <- ggplot(dat, aes(x = x, y = y, color = group)) +
  geom_point(position = position_sunflowerdodge(width = 4,
                                                density = 1,
                                                aspect_ratio = 1)) +
  coord_equal(xlim = c(-2.1, 2.1),
              ylim = c(-2.1, 2.1)) +
  theme_bw() +
  theme(legend.position = "none",
        axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_sunflowerdodge()")

sunflower_plot + sunflowerdodge_plot

position_sunflower() and position_sunflowerdodge()

The density parameter controls the density of the pattern. A density of 1 is normalized to 100 points in a unit circle; a density of 2, 200 points; and a density of 0.5, 50 points. Because density is normalized relative to Cartesian units, its visual effect depends on the ranges of the axes and the dimensions of the saved image. Smaller ranges or larger dimensions require a greater density to produce the same visual effect. Point size matters too.

density

The aspect_ratio parameter changes the aspect ratio of the flowers, which is their width divided by their height. The parameter earns its keep when the position adjustment is used without coord_equal(). The flowers can be made wider or taller to compensate for the aspect ratio of the axes or the image. Set aspect_ratio to the reciprocal of the distortion you are correcting: flowers that render twice as wide as they are tall need an aspect_ratio of 0.5.

For instance, consider a plot with an x axis that ranges from 0 to 1, and a y axis that ranges from 0 to 2. Saving this plot as a square image would squish the y axis, resulting in flowers twice as wide as they are tall. An aspect_ratio of 0.5 offsets that distortion.

Under coord_fixed() the arithmetic is simpler, because ratio already expresses the distortion you need to undo: set aspect_ratio to the same value as ratio and the flowers come out circular. The two parameters agree in value while being defined in opposite directions, since aspect_ratio is width to height and ratio is height to width. The grid below crosses the two, and the circular flowers appear where the values match, running from the top right to the bottom left.

aspect_ratio

Position Honeycomb

position_honeycomb() arranges the same points on a hexagonal lattice, the densest packing of equal circles in the plane. It takes the same density and aspect_ratio as position_sunflower() and covers the same footprint at the same density, so the two are interchangeable and the choice between them is about looks: the lattice reads as countable and orderly, the spiral as organic and without a preferred direction.

position_beeswarm() in the ‘ggbeeswarm’ package also offers a hexagonal method, and does a different job. A beeswarm spreads points along one axis to show the shape of a distribution, so perfectly over-plotted points come out as a line rather than a cluster, and its hexagonal and square methods move points off their true value on the data axis. Reach for a beeswarm to show a distribution, and for this to show a count.

# position_honeycomb()
honeycomb_plot <- ggplot(dat, aes(x = x, y = y)) +
  geom_point(position = position_honeycomb(density = 1,
                                           aspect_ratio = 1)) +
  coord_equal(xlim = c(-2.1, 2.1),
              ylim = c(-2.1, 2.1)) +
  theme_bw() +
  theme(axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_honeycomb()")

# position_honeycombdodge()
honeycombdodge_plot <- ggplot(dat, aes(x = x, y = y, color = group)) +
  geom_point(position = position_honeycombdodge(width = 4,
                                                density = 1,
                                                aspect_ratio = 1)) +
  coord_equal(xlim = c(-2.1, 2.1),
              ylim = c(-2.1, 2.1)) +
  theme_bw() +
  theme(legend.position = "none",
        axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_honeycombdodge()")

honeycomb_plot + honeycombdodge_plot

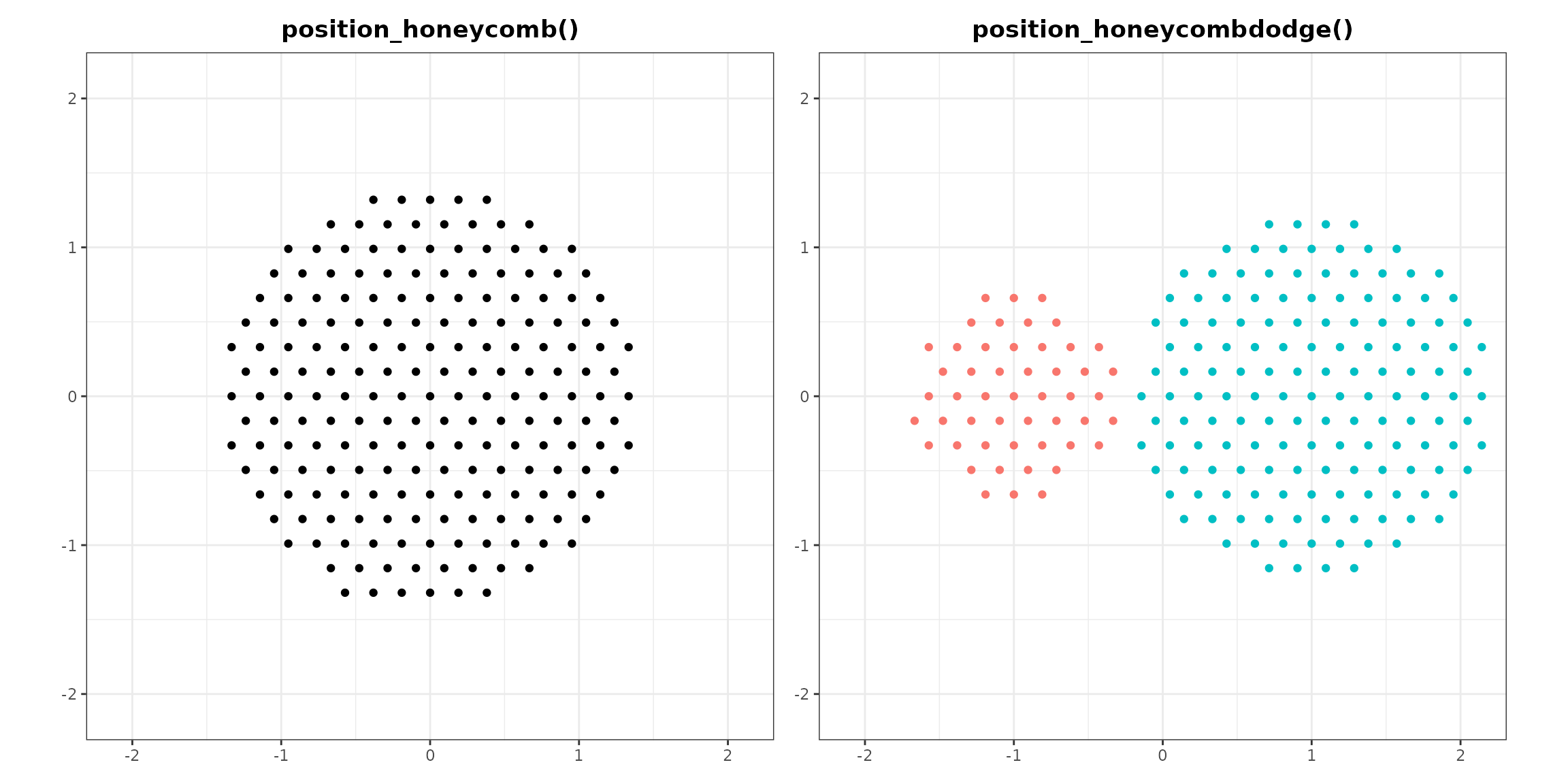

position_honeycomb() and position_honeycombdodge()

Position Circle Pack

position_circlepack() uses a circle packing algorithm from packcircles to arrange perfectly over-plotted points of varying sizes into an elliptical area. It also takes density and aspect_ratio as parameters. Do not confuse it with geom_circlepack() from ggcirclepack, which can be found on GitHub.

# position_circlepack()
circlepack_plot <- ggplot(dat, aes(x = x, y = y, size = size)) +
  geom_point(alpha = 0.25,
             position = position_circlepack(density = 0.25,
                                            aspect_ratio = 1)) +
  coord_equal(xlim = c(-1, 1),
              ylim = c(-1.1, 1.1)) +
  theme_bw() +
  theme(legend.position = "none",
        axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_circlepack()")

# position_circlepackdodge()
circlepackdodge_plot <- ggplot(dat, aes(x = x, y = y, color = group, size = size)) +
  geom_point(alpha = 0.25,
             position = position_circlepackdodge(width = 2,
                                                 density = 0.25,
                                                 aspect_ratio = 1)) +
  coord_equal(xlim = c(-1, 1),
              ylim = c(-1.1, 1.1)) +
  theme_bw() +
  theme(legend.position = "none",
        axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("position_circlepackdodge()")

circlepack_plot + circlepackdodge_plot

position_circlepack() and position_circlepackdodge()

Like position_sunflower(), position_circlepack() works from the inside out in the order of the data. Arranging the data by size therefore organizes the points accordingly.

# random size, base plot
random <- ggplot(dat, aes(x = x, y = y, size = size)) +
  geom_point(alpha = 0.25,
             position = position_circlepack(density = 0.075,
                                            aspect_ratio = 1)) +
  coord_equal(xlim = c(-1, 1),
              ylim = c(-1.1, 1.1)) +
  theme_bw() +
  theme(legend.position = "none",
        axis.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold")) +
  ggtitle("random")

# ascending size
ascending <- random %+%
  arrange(dat, size) +
  ggtitle("ascending")
#> Warning: <ggplot> %+% x was deprecated in ggplot2 4.0.0.
#> ℹ Please use <ggplot> + x instead.
#> This warning is displayed once per session.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.

# descending size
descending <- random %+%
  arrange(dat, desc(size)) +
  ggtitle("descending")

random + ascending + descending

random, ascending, descending

Example

vayr also includes data from the Patriot Act experiment described in Persuasion in Parallel. The Patriot Act was an anti-terrorism law, and the patriot_act dataset comes from an experiment that measured support for this law after randomly exposing participants to statements that cast the legislation in either a negative or positive light. The experiment was conducted in 2009 with a nationwide sample, and it was replicated in 2015 with a sample of MTurkers. In both instances, the treatments had a similar effect on Democrats and Republicans. The data hold four variables:

sample_label, the study to which the participant belonged
pid_3, the partisanship of the participant
T1_content, the statements to which the participant was exposed
PA_support, the participant’s post-treatment support for the Patriot Act

The figure below visualizes the data using position_sunflowerdodge() from vayr. It adjusts both density and aspect_ratio: a high density compensates for the small point size, and a tall aspect_ratio compensates for the wide plot.

# A df for statistical models
summary_df <- patriot_act |>
  group_by(T1_content, pid_3, sample_label) |>
  reframe(tidy(lm_robust(PA_support ~ 1)))

# A df for direct labels
label_df <- summary_df |>
  filter(sample_label == "Original Study", T1_content == "Control") |>
  mutate(
    PA_support = case_when(
      pid_3 == "Democrat" ~ conf.low - 0.15,
      pid_3 == "Republican" ~ conf.high + 0.15
    )
  )

ggplot(patriot_act, aes(T1_content, PA_support, color = pid_3, group = pid_3)) +
  # the data
  geom_point(position = position_sunflowerdodge(width = 0.5,
                                                density = 50,
                                                aspect_ratio = 0.5),
             size = 0.1, alpha = 0.5) +
  # the statistical model
  geom_line(data = summary_df, aes(x = T1_content, y = estimate),
            position = position_dodge(width = 0.5), linewidth = 0.5) +
  geom_point(data = summary_df, aes(x = T1_content, y = estimate),
             position = position_dodge(width = 0.5), size = 3) +
  geom_linerange(data = summary_df, aes(x = T1_content, y = estimate,
                                        ymin = conf.low, ymax = conf.high),
                 position = position_dodge(width = 0.5)) +
  # the direct labels
  geom_text(data = label_df, aes(label = pid_3)) +
  # the rest
  scale_color_manual(values = c("blue4", "red3")) +
  scale_y_continuous(breaks = 1:7) +
  coord_fixed(ratio = 0.5) + # ratio for coord_fixed is y/x rather than x/y
  facet_wrap(~sample_label) +
  theme_bw() +
  theme(legend.position = "none",
        strip.background = element_blank(),
        panel.grid.minor = element_blank()) +
  labs(y = "Do you oppose or support the Patriot Act?
            [1: Oppose very strongly to 7: Support very strongly]",
       x = "Randomly assigned information")
#> Warning: Removed 3 rows containing missing values or values outside the scale range
#> (`geom_point()`).

patriot_act

The figure shows the design, the data, and the analysis at once. Each point is one respondent, arranged in flowers so that the number of subjects sitting on each of the seven scale points stays visible. The lines and vertical bars are group means with their 95 percent confidence intervals.

Republicans support the Patriot Act more than Democrats do, by about a point on the seven-point scale, in both the original study and the replication. The treatments move the two groups by similar amounts and in the same direction. In the original study, pro-Patriot Act statements raise support by 0.69 points (robust standard error: 0.27) among Democrats and by 0.57 (0.30) among Republicans, while anti-Patriot Act statements lower it by 0.61 (0.26) and 0.84 (0.32). The replication reproduces the pattern at slightly smaller magnitudes. The lines run roughly parallel, separated by a level difference the treatments do not close.

Plotting in data-space is what makes the parallelism legible. The flowers show how much of each group sits at each scale point, so a reader can see the spread that the group means summarize rather than taking the intervals on faith.
