Arrange over-plotted points on a honeycomb lattice and dodge groups side-to-side

This function applies the honeycomb position adjustment alongside the dodge position adjustment, arranging overlapping points per x, y, and group on a hexagonal lattice. See the position_honeycomb() documentation for more information.

Usage

position_honeycombdodge(
  width = 1,
  density = 1,
  aspect_ratio = 1,
  orientation = "x"
)

Arguments

width

The dodging width, which defaults to 1.

density

The pattern density, which defaults to 1 but will have to be adjusted in most cases. The desirable density will depend on both the ranges of the axes and the dimensions of the image.

aspect_ratio

An aspect ratio adjustment to compensate for distortion of the circular arrangement, which might occur when plotting if coord_equal() is not used. A wide aspect ratio (e.g., 2) would adjust for vertical stretching, whereas a tall aspect ratio (e.g., 0.5) would adjust for horizontal stretching. The default aspect ratio of 1 is appropriate when no adjustment is required. Under coord_fixed(), set aspect_ratio to the same value as that function's ratio argument.

orientation

The axis along which groups are separated, either "x" (the default, side-to-side) or "y" (up and down). Matches the argument of the same name in ggplot2::position_dodge().

Value

A ggproto object of class PositionHoneycombDodge.

See also

Other Functions: impute_extreme_values(), position_bluenoise(), position_bluenoisedodge(), position_circlepack(), position_circlepackdodge(), position_honeycomb(), position_jitter_ellipse(), position_jitterdodge_ellipse(), position_sunflower(), position_sunflowerdodge(), sunflower()

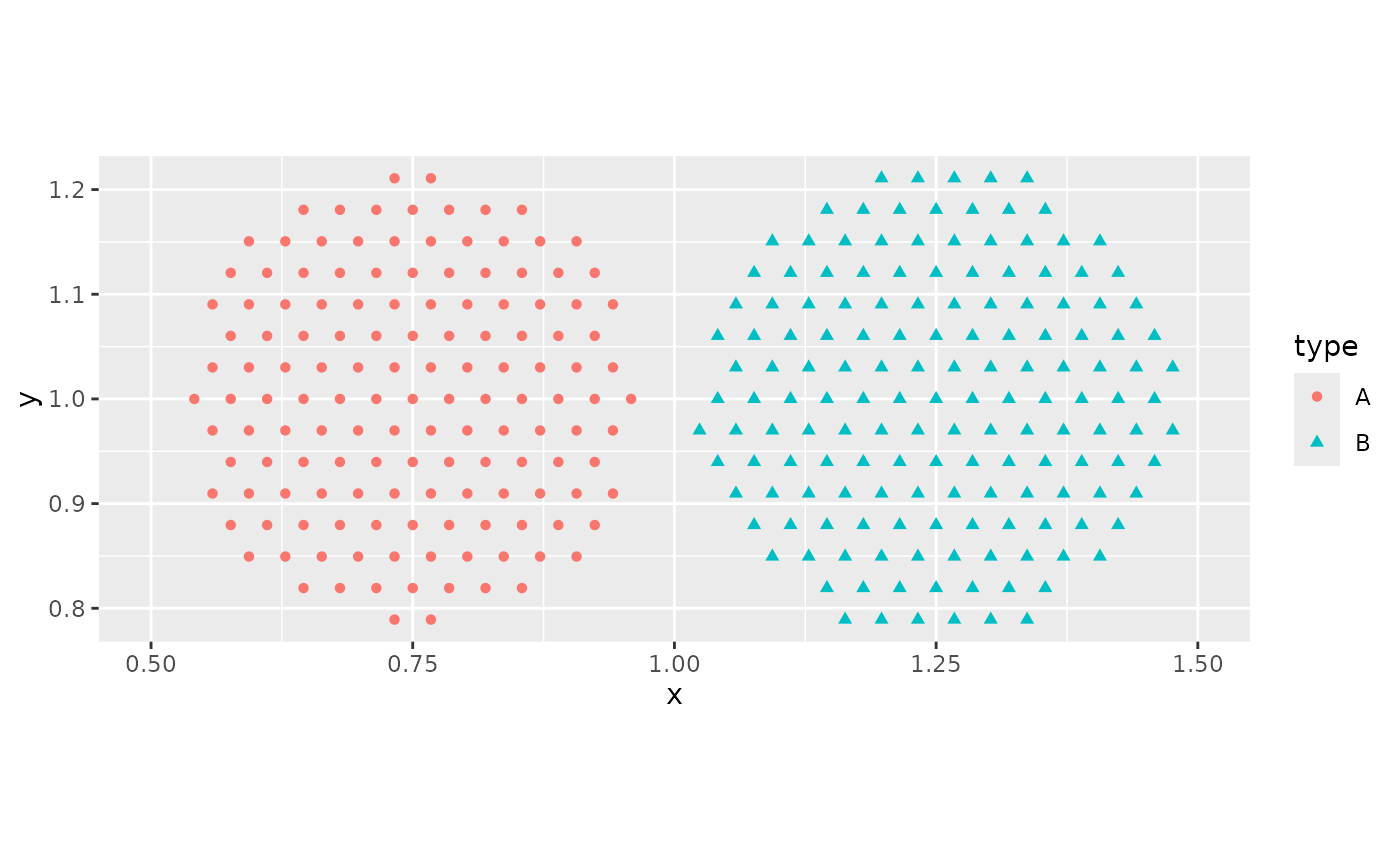

Examples

  library(ggplot2)

  dat <- data.frame(
    x = rep(1, 300),
    y = rep(1, 300),
    type = factor(sample(LETTERS[1:2], 300, replace = TRUE))
  )

  ggplot(dat, aes(x, y, color = type, shape = type)) +
    geom_point(position = position_honeycombdodge(width = 1, density = 30)) +
    coord_equal()
