Scatter over-plotted points evenly at random and dodge groups side-to-side

This function dodges groups of points side-to-side and then scatters the points that share a position across an elliptical field, spacing them evenly. See the position_bluenoise() documentation for more information.

Usage

position_bluenoisedodge(
  scatter.width = NULL,
  scatter.height = NULL,
  dodge.width = 1,
  candidates = 10,
  seed = NA,
  orientation = "x"
)

Arguments

scatter.width, scatter.height

The dimensions of the elliptical field the points are spread across.

dodge.width

The dodging width, which defaults to 1.

candidates

The number of random draws considered for each point.

seed

A random seed for reproducibility.

orientation

The axis along which groups are separated, either "x" (the default, side-to-side) or "y" (up and down). Matches the argument of the same name in ggplot2::position_dodge().

Value

A ggproto object of class PositionBlueNoiseDodge.

See also

Other Functions: impute_extreme_values(), position_bluenoise(), position_circlepack(), position_circlepackdodge(), position_honeycomb(), position_honeycombdodge(), position_jitter_ellipse(), position_jitterdodge_ellipse(), position_sunflower(), position_sunflowerdodge(), sunflower()

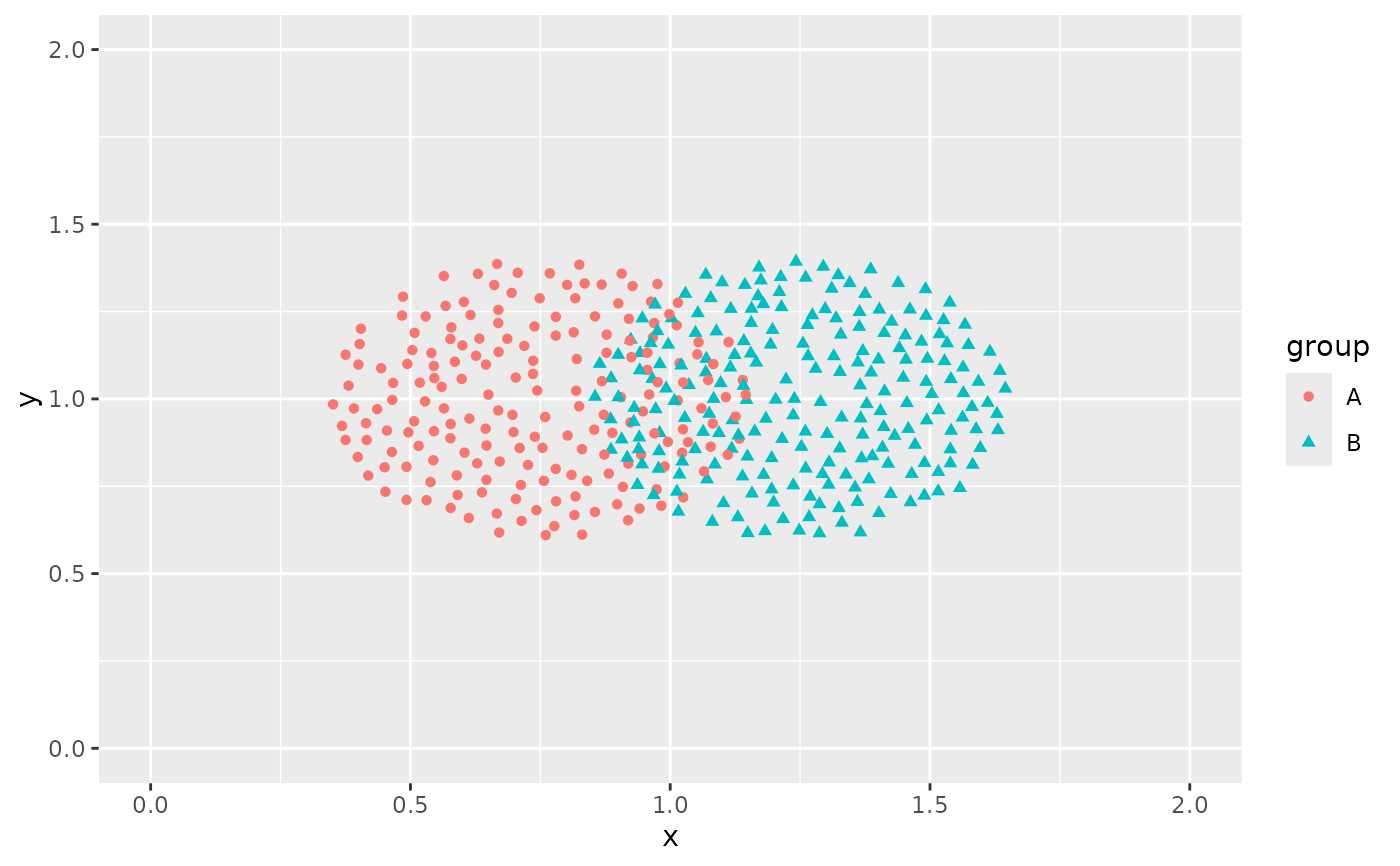

Examples

  library(ggplot2)

  dat <- data.frame(x = rep(1, 400), y = rep(1, 400),
                    group = sample(LETTERS[1:2], 400, replace = TRUE))

  ggplot(dat, aes(x, y, shape = group, color = group)) +
    geom_point(position = position_bluenoisedodge(scatter.width = 0.4,
                                                  scatter.height = 0.4,
                                                  dodge.width = 1)) +
    coord_cartesian(xlim = c(0, 2), ylim = c(0, 2))
